#Overview

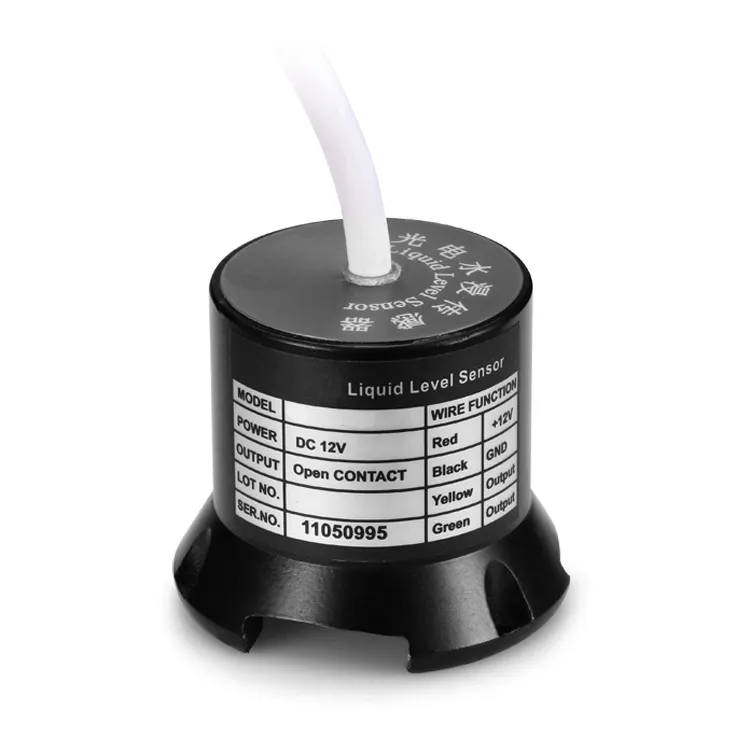

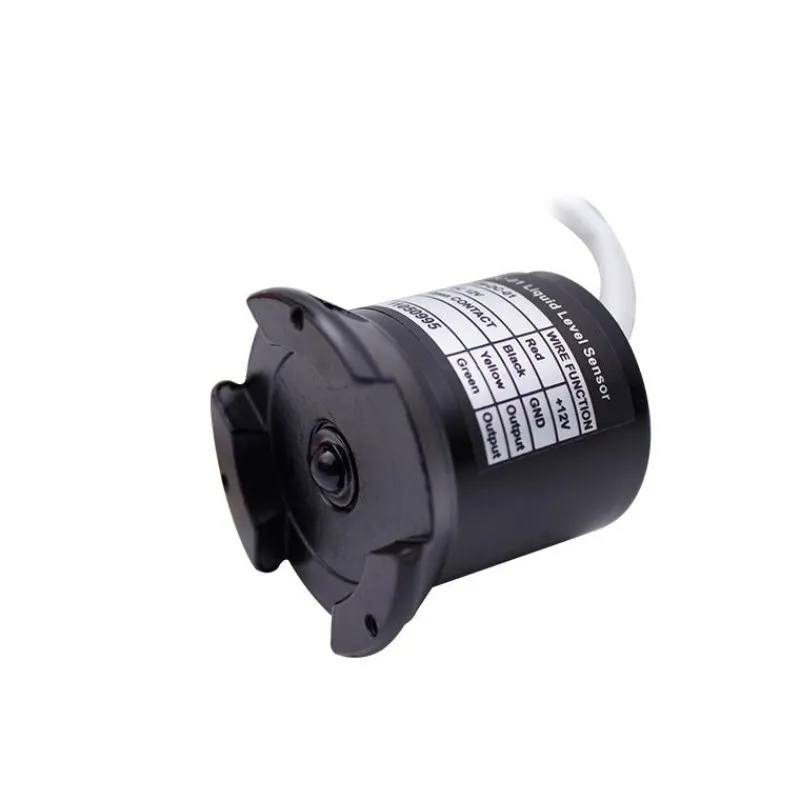

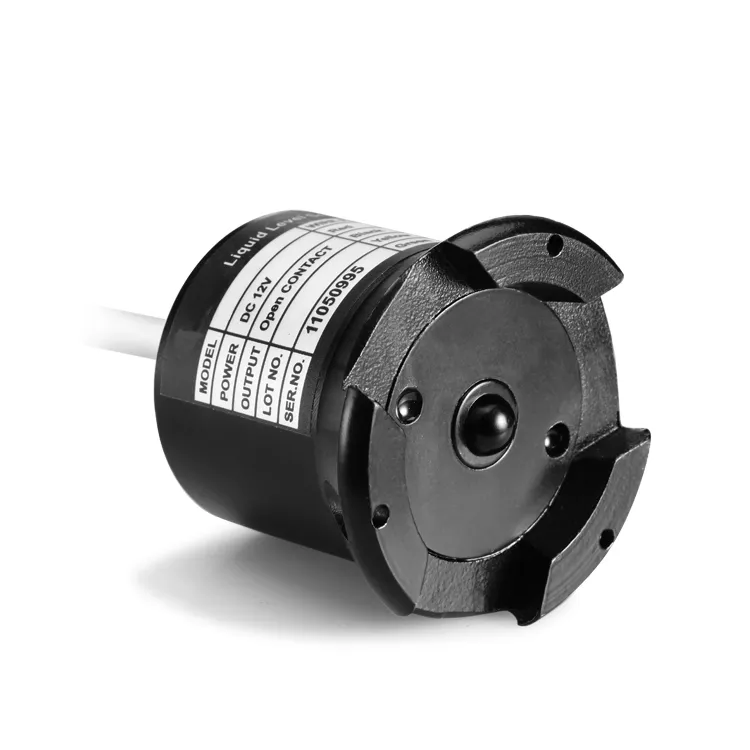

The EX-LC-S22 is a compact spot leak detector for detecting water, gasoline, diesel and acid-base liquids with a concentration of less than 30% after dilution at a fixed monitoring point. It uses photoelectric detection technology and a sealed structure to improve stability in demanding environments.
When leakage occurs, the detector outputs a relay signal that can trigger an alarm, close a valve, or send a signal to an external monitoring module.
#Key Features
- Fully sealed design for stable operation
- Photoelectric detection principle
- Suitable for gasoline, diesel and acid-base liquids with a concentration of less than 30% after dilution.
- Anti-strong-light interference capability
- Corrosion-resistant spherical probe cover
- One relay output, NO & COM
- Automatic reset after leakage is removed
- Screw fixing holes for firm installation
- Compact metal shell filled with epoxy resin
#Applications
- Water collection trays
- Pump rooms
- Equipment rooms
- Water tanks and sinks
- Industrial floors
- Valve areas
- Gas stations and oil depots
- Dust-concentrated environments
#Technical Specifications
| Item | Specification |
|---|---|
| Model | EX-LC-S22 |
| Detection Type | Spot water / liquid leak detection |
| Detection Principle | Photoelectric detection |
| Detectable Liquid | Water, weak acid liquid below 30% |
| Power Supply | 9–28V DC, 12V DC recommended |
| Rated Power | 0.2W |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Operating Humidity | 0–100%RH, non-condensing |
| Relay Output | 1 group, NO & COM |
| Cable Length | Standard 2 meters |
| Material | Metal shell, filled with epoxy resin |
| Dimension | Φ47 × 42.5 mm |
| Insulation Resistance | >100MΩ |
#FAQ
Q1: What liquid can the EX-LC-S22 detect?
It is designed for water and weak acid liquid below 30%.
Q2: What output does it provide?
It provides one relay output, NO & COM.
Q3: Can it control an alarm or valve?
Yes. The relay output can be connected to sound-light alarms, valves, monitoring modules, or other external devices.
Q4: Does the detector reset automatically?
Yes. It returns to normal status automatically after the leakage is cleared.
