#Overview

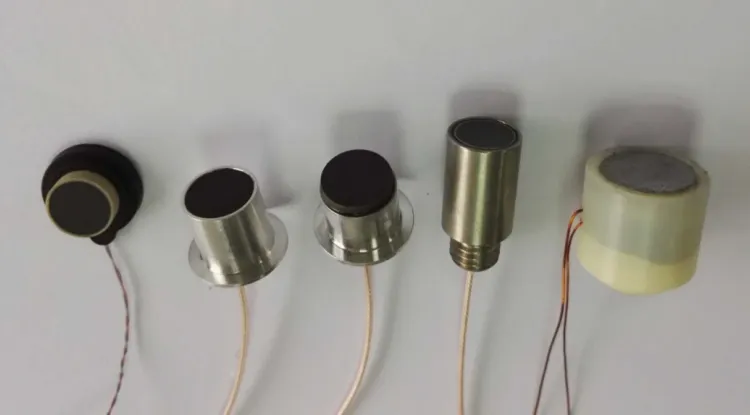

Our series of ultrasonic transducers are the heart of modern gas metering solutions. Engineered for stability and precision, these sensors enable the highly accurate measurement of gas flow without moving parts, leading to minimal maintenance and extended service life. This product family offers a selection of frequencies and housing materials to perfectly match your specific gas meter design, from standard natural gas applications to more challenging environments.
#Key Features
- Optimized Frequency Range: Choose from 100KHz, 200KHz, and 220KHz models to balance range, penetration, and resolution.
- Robust Housing Options: Select from standard Nylon, durable Aluminum, or corrosion-resistant PEEK/NBR composites for demanding media.
- High-Pressure Tolerance: Withstands typical gas line pressures, ensuring durability and consistent performance.
- Wide Operating Temperature: Reliably functions from -20°C to +70°C, suitable for indoor and outdoor meter installations.
#Technical Specifications
| Part number | SUS0100K23TR | SUS0200K14TR | SUS0220K14TR | SUS0220K14TR |
| Norminal Frequency | 100KHz±5% | 200KHz±5% | 220KHz±5% | 220KHz±5% |
| Construction | High frequency type | High frequency type | High frequency type | High frequency type |
| Using Method | Dual Use | Dual Use | Dual Use | Dual Use |
| Bandwidth | >8KHz | >16KHz | >16KHz | >16KHz |
| Overall Sensitivity (0dB=20Vp-p, 9Pulses, 20cm) |
-50dBmin (17cm) |
-55dBmin | -55dBmin | -55dBmin |
| Capacitance | 140pF±20% | 500pF±20% | 500pF±20% | 490pF±20% |
| Max. Input Voltage | 200Vp-p | 150Vp-p | 150Vp-p | 100Vp-p |
| Directivity(at -6dB) | 16º±2º | 13º±2º | 13º±2º | 13º±2º |
| Ring（μS） | 360max | 160max | 160max | 160max |
| Compression(KPa) | 300 | 150 | 150 | 150 |
| Operating temperature range | -20℃ to +70℃ | -20℃ to +70℃ | -20℃ to +70℃ | -20℃ to +70℃ |
| Storage temperature range | -30℃ to +75℃ | -30℃ to +75℃ | -30℃ to +75℃ | -30℃ to +75℃ |
| Size（mm） | Φ22*23 | Φ20*15 | Φ20*15 | Φ18*9 |
| The shell material | Nylon | Aluminum | Aluminum | PEEK/NBR |
#FAQ
-
Q: How do I choose the right frequency for my gas meter?
A: 100KHz offers wider beam angle and good penetration for larger meter bodies. 200KHz/220KHz provide higher resolution and a more focused beam for compact, high-accuracy meters. -
Q: What is the advantage of the PEEK/NBR housing?
A: It provides superior resistance to corrosive gases and moisture, making it essential for meters used in harsh environments or with special gas compositions.
